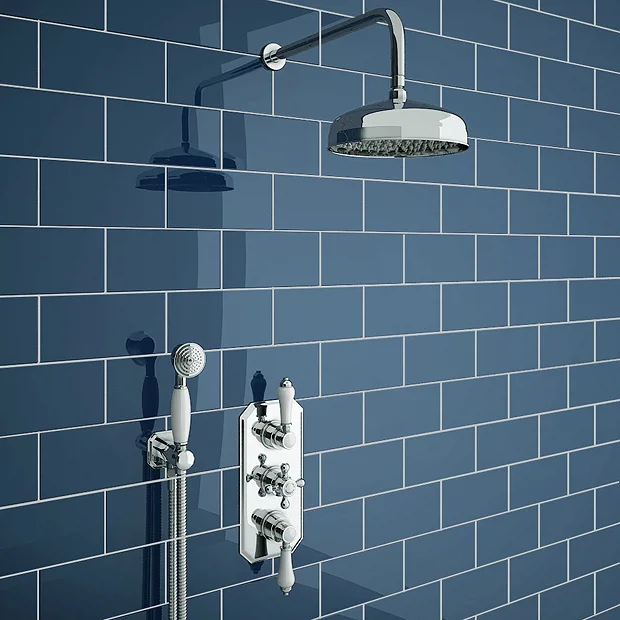

Trafalgar Traditional Triple Thermostatic Shower Package With Head + Handset

Trafalgar Traditional Triple Thermostatic Shower Package with Head + Handset


With this innovative Trafalgar Traditional Triple Thermostatic Shower Package, you’re in total control. It’s both quick and simple to adjust temperature and flow thanks to the practical thermostatic shower valve, which comes complete with two handy shower accessories that can work separately or simultaneously. This two outlet shower valve combines period shaping with a contemporary minimalist look. You can even hide messy pipework behind the wall, displaying only the elegant faceplate, handles and fixed shower head. Although they might look antique, the features are newly made from durable brass and ceramic to withstand frequent use.

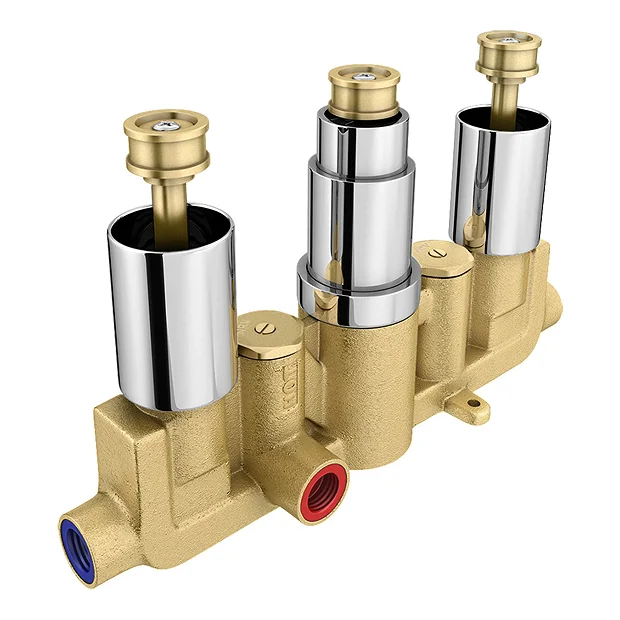

Triple Concealed Thermostatic Shower Valve Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Thermostatically controlled
• Classic face plate, lever and cross head handles

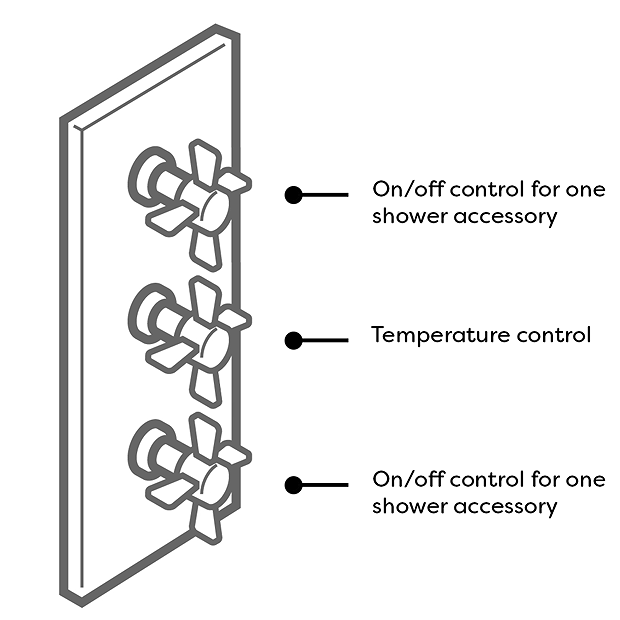

• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.

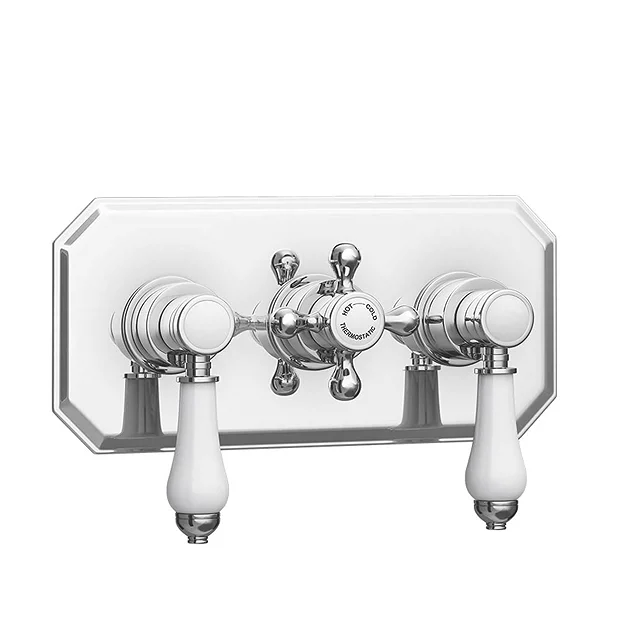

• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
  Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

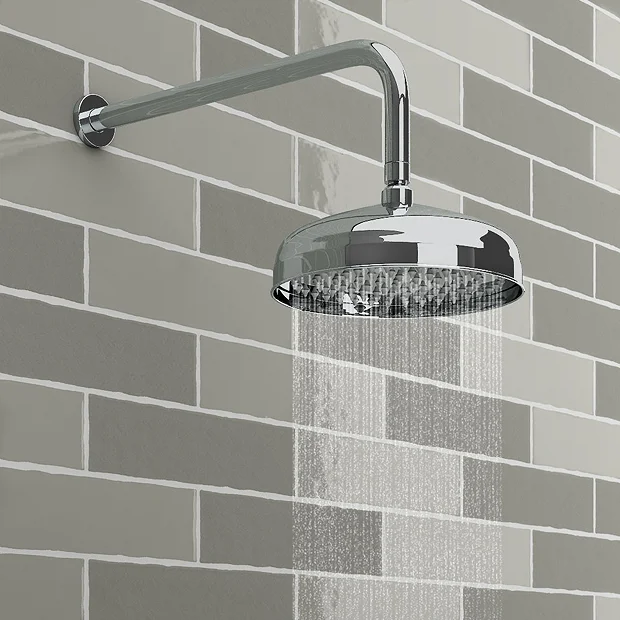

Shower Head with Arm Details

• Diameter: 210mm
• Height: 100mm
• Shower arm length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Rainfall shower
• Pressure requirement 0.5 bar minimum
• Installation of the arm requires rear access behind the wall.

Outlet Elbow with Parking Bracket, Flex & Handset Details

• Height: 216mm
• Width: 50mm
• Depth: 98mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• 1/2″ BSP connections
• Outlet elbow covers unsightly fittings
• Suitable for use with concealed shower valves
• Chrome 1.5m flexible hose
• Wall mounted
• Suitable for water pressure systems of 0.2 bar and above

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images for illustrative purposes only

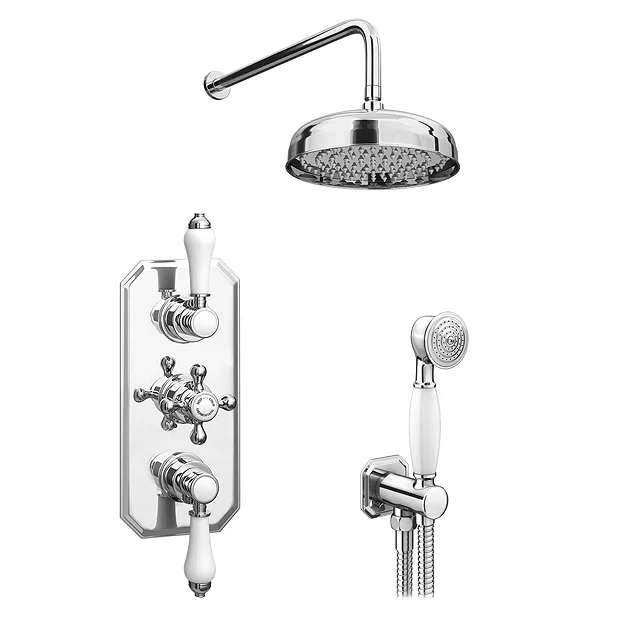

Comprises

(1) Traditional Triple Concealed Thermostatic Shower Valve
(1) Traditional 8″ Apron Rose Shower Head with Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
